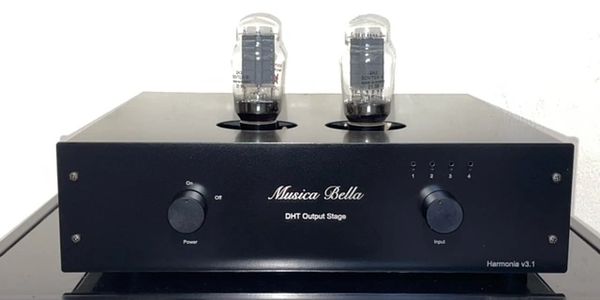

Harmonia v3.1 45/2A3/300B

2025 Harmonia v4 - The Harmonia v4 will continue on only as a DHT output stage. A volume control will no longer be supplied with the V4.

2025 Production pictures posted soon.

Notice: The Harmonia is not a "buffer stage". It is a true DHT output stage. The Harmonia products DO NOT use a cathode follower circuit like other buffer stages on the market where you do not benefit from the full potential of the DHT tube. With the Harmonia you are hearing the full 45/2A3/300B sound.

The industry's one and only DHT vacuum tube output stage

**Notice:** The Harmonia is not a mere "buffer stage"; it is a genuine DHT (Directly Heated Triode) output stage. Unlike typical buffer stages available in the market, which utilize cathode follower circuits, the Harmonia fully leverages the capabilities of DHT tubes. With the Harmonia, you experience the true sound of the 45/2A3/300B.

 **Introducing the Unique DHT Vacuum Tube Output Stage**

The Harmonia is meticulously designed to elevate audio systems with the distinct sonic richness that single-ended triode tubes provide.

 Key Features:

 1. The DHT tube serves as the core component, delivering the hallmark SET sound.

2. A relay-based input selector facilitates connection of up to four source components. In the balanced configuration, all inputs and outputs are transformer coupled for optimal performance.

3. An optional volume control allows for convenient volume adjustments.

4. Dual DC regulated power supplies ensure clean DC voltage is delivered to the tube filaments.

The Harmonia represents a singular advancement in DHT vacuum tube output stage design, focusing on the most revered SET tubes: the 45/2A3 and 300B.

Over the years, Musica Bella has been dedicated to refining this innovative design, ensuring an unparalleled listening experience.

OVERVIEW

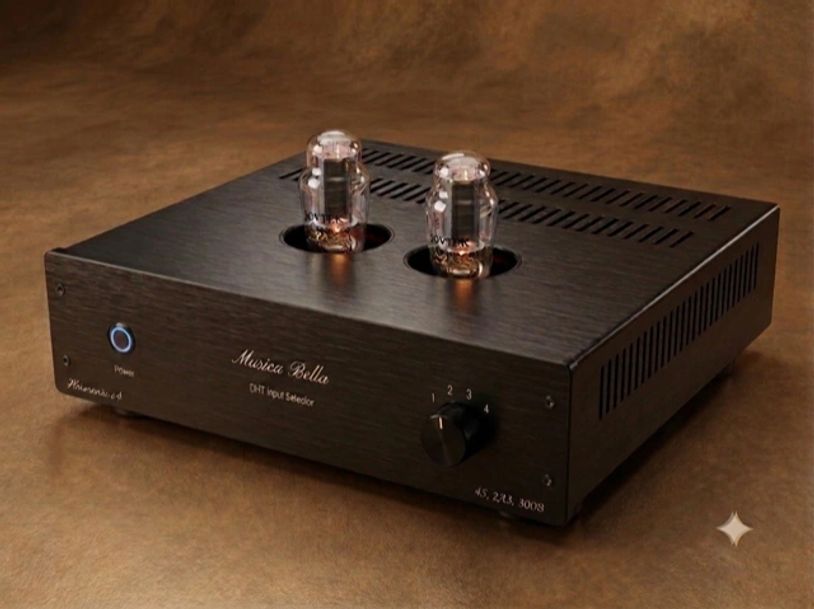

The Harmonia stands as the world’s first audiophile-grade output stage, meticulously engineered around a Directly Heated Triode (DHT) tube. This innovative design remains unparalleled, providing a DHT vacuum tube output stage worthy of integration into even the most sophisticated audio and video systems. It serves as a standalone DHT output stage, enriching your listening experience with the sonic depth and warmth characteristic of the 45/2A3 or 300B tubes.

For those who have yearned for the Single-Ended Triode (SET) sound but encountered limitations in traditional amplifiers—particularly with today’s more demanding speaker loads—the Harmonia v4 offers a solution. Featuring a high-quality relay-based input selector, it allows for the rich characteristics of a SET output stage to be accessed by up to four source components, seamlessly integrating into high-powered solid-state systems.  Additionally, for installations requiring higher gain, the Harmonia v4 is available as a zero-gain DHT preamplifier equipped with a volume control.

 Within the chassis of the Harmonia v4, Response Audio upholds its commitment to exceptional quality, utilizing only the finest components. Consistent with our standards, you will find minimal circuit boards, as the design primarily employs independent dual DC regulated power supplies for the tube heaters. Both the power supply and analog circuits are crafted using 100% point-to-point wiring, ensuring optimal performance and reliability.

The circuit design is critical, featuring a carefully curated selection of passive components that bring the Harmonia to life. Premium-grade capacitors contribute to sonic richness while ensuring extended detail and clarity.

In line with the standards set by all Response Audio products, the Harmonia V4 is equipped with a robust power supply. It begins with a high-current transformer and includes fully regulated DC filament supplies dedicated to each tube filament, guaranteeing optimal performance. For the V4 series, we have introduced a new regulated DC filament supply that maintains a stable 2.5V or 5V, accommodating tubes that require high filament currents.

Each main B+ and filament supply is driven by separate high-current transformers. The B+ supply for the tubes employs a CLCRC topology with a choke-loaded anode for each tube. This design choice means that a choke replaces the capacitor or resistor as the feeding element to the plate. Musica Bella has a reputation for offering some of the quietest components on the market, and the Harmonia achieves an exceptionally low noise floor, producing a strikingly black background.

The Harmonia seamlessly integrates with any source component, such as tape loops, integrated amplifiers, and receivers. When positioned after a high-quality CD player, DAC, or phono stage—regardless of whether they are tube or solid-state—the Harmonia imparts a richness, smoothness, and organic quality reminiscent of Single-Ended Triode (SET) systems, all while maintaining the high standards expected from premium audio equipment.

 This device has the ability to elevate a dry, fatiguing home theater into a listening experience that guests may mistake for being powered by SET tubes. However, it's important to note that the Harmonia cannot transform inferior components into exceptional systems; its role is to enhance and reveal the full potential of your existing setup.

For those who enjoy experimenting with tubes, we encourage you to explore the use of your favorite Directly Heated Triode (DHT) tube to maximize performance.

  The Harmonia is offered in both fully balanced and all single-ended configurations.  Please be aware that the Harmonia does not feature an LED power indicator. Upon activation, the LED for the last used input will illuminate.

 Integrating the Harmonia into any audio system is as straightforward as connecting any standard source component.  The benefits of the Harmonia are as follows:  - Restores proper frequency balance through superior impedance matching attributed to its exceptionally low output impedance. - Enhances tone and weight without introducing unwanted bloom. - Adds DHT smoothness, richness, and organic characteristics to otherwise sterile or dry solid-state and tube source components. - Improves the dynamics of source components that lack effective impedance matching. - Increases detail, resolution, and transparency. - Reduces listener fatigue. - Enhances the three-dimensional soundstage of higher-grade electronics and recordings.

Design Features

We have employed several new techniques to provide you with a smooth, noise free presentation from the sensual sound of a DHT tube.

• The DHT tube sockets are mounted using Vibration Isolating Shock Absorbers mounted to the chassis with solid Brass Standoffs holding the DHT tube socket.
• Standoff Vibration Isolating Shock Absorbers are used to mount the power supply board to the chassis.
• EMI/EFI noises are handled by a combination of Faraday and Copper shielding.

Signal Stage

- High quality tube sockets

- Neutrik RCA jacks insure low connector loss and high signal transfer

-  Balanced output transformers (balanced version only)

- Transformer coupling of both balanced and RCA single ended inputs and outputs (balanced version only)

- Neutrik XLR connectors

- Quality output coupling capacitors for smooth, full bodied sound while maintaining air, extension and detail.

- Tube cathode bypass capacitors bypassed with high quality film capacitors

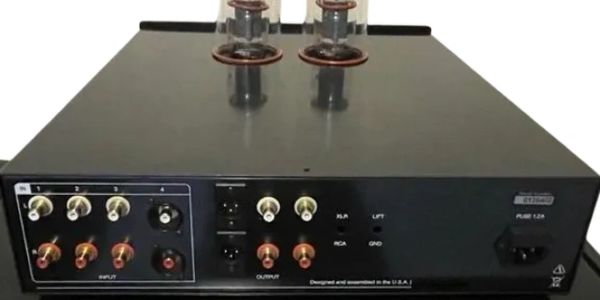

- XLR/RCA ground switch on balanced version allows for best grounding plan for your application

- Equipped with 2 pieces Sovtek 2A3 tubes

Power Supply (5AR4 Tube Power Supply Available On Request)

- High current toroidal transformers.

- Regulated DC tube filament supplies running off separate transformer taps for exact voltage. One for each DHT tube

- Choke filtered

- UF diodes used for rectifying stage

- Each DHT tube is choke loaded on the anode

Applications:

-DHT Source selector between sources and preamplifier (recommended), integrated amplifier, solid state receiver, tape loop

- Use between preamp and amplifier to get that DHT emotional sound.

- Use as preamplifier in high efficiency system.

Current In-Stock Chassis
- Aluminum

-3/8" Thick Aluminum Faceplate. You choose the color

-Custom Charcoal Powder Coat Chassis

- Laser Engraved Front Panel

-Heavy damping material applied

Specifications

- Output gain: <1dB
- Output impedance: 180 ohms balanced
                                              150 ohms single ended- Gain: <1dB
- Tubes: 2x 45, 2A3 or 300B
- 16" W x 16" D x 4.5" H with feet
                          9.5" H with tubes

 Direct price Balanced:  $4,995

2A3 VERSION CLEARANCE PRICE WHILE CURRENT CHASSIS LAST$2,995

Footnotes:

(*) - Please note that when used between a preamplifier and amplifier, there is a slight potential for noise depending on your system configuration.
