The Musica Bella Reference Linestage is based on the award winning Purity Audio Design Reference linestage. This piece will continue to be part of our lineup and now under the Musica Bella name.
We are working on the new chassis design. Until the time the new chassis are ready, you can enjoy this amazing preamp in the original chassis at great savings.

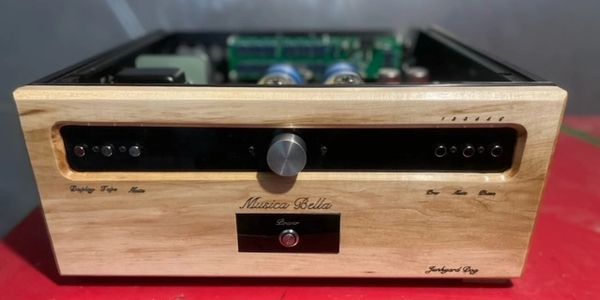

We can custom build to original specs as seen below or custom design to fit your personal preferences. based on our 6SN7 Reference circuit. Available with a solid state or tube rectified power supply and choice of wood or acrylic front panel. Unit above is sold. Utilizes a 5U4 tube rectified power supply with 100% polypropylene capacitors
Shown above is the bottom power supply chassis to the original Purity Statement dual mono, twin chassis linestage. This chassis would be populated with an abundance of polypropylene filter capacitors, 2 chokes and two high current toroidal transformers. Please contact us if you are interested in talking about a Statement based linestage.
Starting at $12,995
Musica Bella Reference comes equipped with a tape loop installed allowing you to insert the DHT Harmonia stage into the signal adding the sonic richness of your favorite DHT; 45/2A3/300

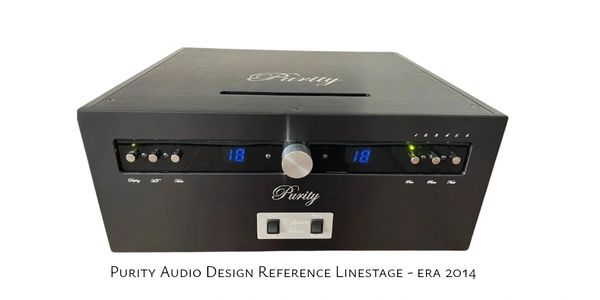

The Musica Bella Reference linestage is based on the award winning Purity Audio Design Reference Linestage I designed over 10 years ago. At this time, we now have only one chassis available including the twin chassis design of the Purity Statement Linestage. Once sold, we will be going to a standard chassis with a new designed still based on the same circuit. Here are the full details on the original Purity Reference as seen in the photo above.
- Zero feedback design
- Transformer coupled balanced inputs
- Transformer coupled balanced outputs
- Dual triode 6SN7 signal tubes
- Bent Audio Autoformer volume control system with full front panel and source input board
- Central one-point star earth grounding
- Separate transformer and power supply for remote system
- Laser engraved front, rear and top panels
- Top quality input / output single ended RCA and XLR connectors
- Line Inputs - 6 sets - 3x Balanced / 3x single ended
- Line Outputs - 4 sets - 2x Balanced / 2X single ended
- Tape loop - RCA Input/Output
- Phase & Mute
Analog components:
- Clarity Cap coupling capacitors
- Cinemag Balanced input transformers
- Cinemag Balanced output transformers
Power Supply components:
- Tube power supply or solid state. Both with 100% Polypropylene storage capacitors
- Choke filtered
- High current "Ultra Fast - Soft Recovery" diodes
- Separate, dedicated power supply for remote unit
Optional Tube Power Supply
Selling Price $8,995
Original Selling Price $16,995
The Musica Bella Statement linestage is based on the award winning Purity Audio Design Reference 6SN7 circuit. At this time, we now have only one chassis available to build the twin chassis design of the Purity Statement Linestage.
- Full Dual Mono Design
- Zero feedback design
- Transformer coupled balanced inputs
- Transformer coupled balanced outputs
- Dual triode 6SN7 signal tubes
- Bent Audio Autoformer volume control system with full front panel and source input board
- Central one-point star earth grounding
- Separate transformer and power supply for remote system
- Laser engraved front, rear and top panels
- Top quality input / output single ended RCA and XLR connectors
- Line Inputs - 6 sets - 3x Balanced / 3x single ended
- Line Outputs - 4 sets - 2x Balanced / 2X single ended
- Tape loop - RCA Input/Output
- Phase & Mute
Analog components:
- Clarity Cap coupling capacitors
- Cinemag Balanced input transformers
- Cinemag Balanced output transformers
Full Mono Power Supply components:
- 20x 100% Polypropylene storage capacitors
- Dual Choke filtered
- Dual regulated DC filament supplies
- High current "Ultra Fast - Soft Recovery" diodes
- Separate, dedicated power supply for remote unit
Optional Tube Power Supply
-Umbilical cord
Selling Price $12,995
Original Selling Price $24,995
