Segue v2 Single ended Linestage

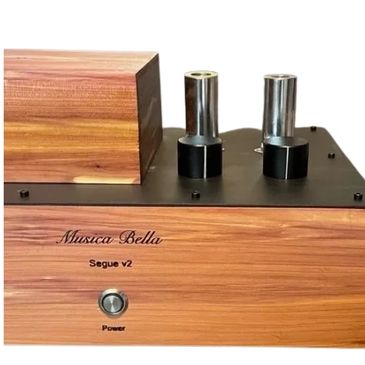

Pictures of various Segue builds can be seen at bottom of this page.

Please note that beginning 2025, the Sgue will be housed in an aluminum chassis with Bronze Acrylic front panel. Same as the Vivace EL84 integrated amplifier.

Overview

Designed as a matching linestage for our Custom SE Amplifiers, the Segue v2 is a perfect match for most of todays systems that do not require much front end gain. The Segue v2 is a perfect match for todays Class D amplifiers. The Segue v2 is also available as a straight buffer stage without controls.

The Segue v2 can be built using Baltic Birch Ply, Hardwoods or an aluminum chassis.. Contact us to get a quote on a build done in a hardwood of your choice.

Standard Builds are done in Baltic Birch Ply or Metal Chassis w/hardwood or acrylic faceplate..

Musica Bella has been designing high end buffer circuits for over a decade. The new Segue v2 exceeds even the popular Harmony design from Purity Audio Design years back and at a fraction of the price. The Segue v2 features a new, rather unique topology based around a white cathode follower using 2 different circuits for each half of the 12AU7 or 12AT7 dual triode tubes. Sporting a lively triode tube stage, the Segue delivers powerful and dynamic sonic performance with just the right amount of tube euphonics to breath new life into your tube or solid state system. Don’t be surprised if you find yourself enjoying your music collection all over again…and again! (Don't you hate it when you see this phrase)

Designed from the ground up over the past 5 years, two triode tubes are employed with each tube dedicated to a stereo channel. Using a dual triode allows us to incorporate a unique and different topology for each half of the tube.

The Segue v2 comes standard with 3 sets of RCA inputs, 2 sets RCA outputs  and non-remote volume control (Remote volume optional). The Segue v2 is very versatile allowing it to be used as a linestage preamplifier with any of the Musica Bella amplifiers.

The Segue is designed to work with any power amplifier with an input impedance of only 10k ohms and higher and provides proper impedance matching as well as the ability to drive long interconnect cables.

Standard Chassis is black anodized aluminum 12" x 12" x 4.5" with laser engraved aluminum front panel.

Wood front panels available. See pricing below.

• Three sets of line level inputs
• Two sets of line level output
• Alps volume control. Remote volume with Mute optional
• Top panel INPUT selector
• High current toroidal transformer(s)
• Regulated DC tube filament supplies
• Top quality input/output capacitors
• Choke filtered, Solid state power supply

• Input Impedance: 100K ohms
• Output Impedance: 100 ohms
• Gain: 1dB
• Non-Inverting
• Tubes: 2x 12AU7/ECC82 or 12AT7/ECC81
• Dimensions: 12" W x 112" D x 4.5" H (aluminum chassis with footers and tubes included)
• Direct Price -
• NON-REMOTE VOLUME - $1,895
• REMOTE VOLUME/MUTE add $125
• Straight Buffer - $1,295

• Warranty: 2 years parts and labor. 90 days on tubes
